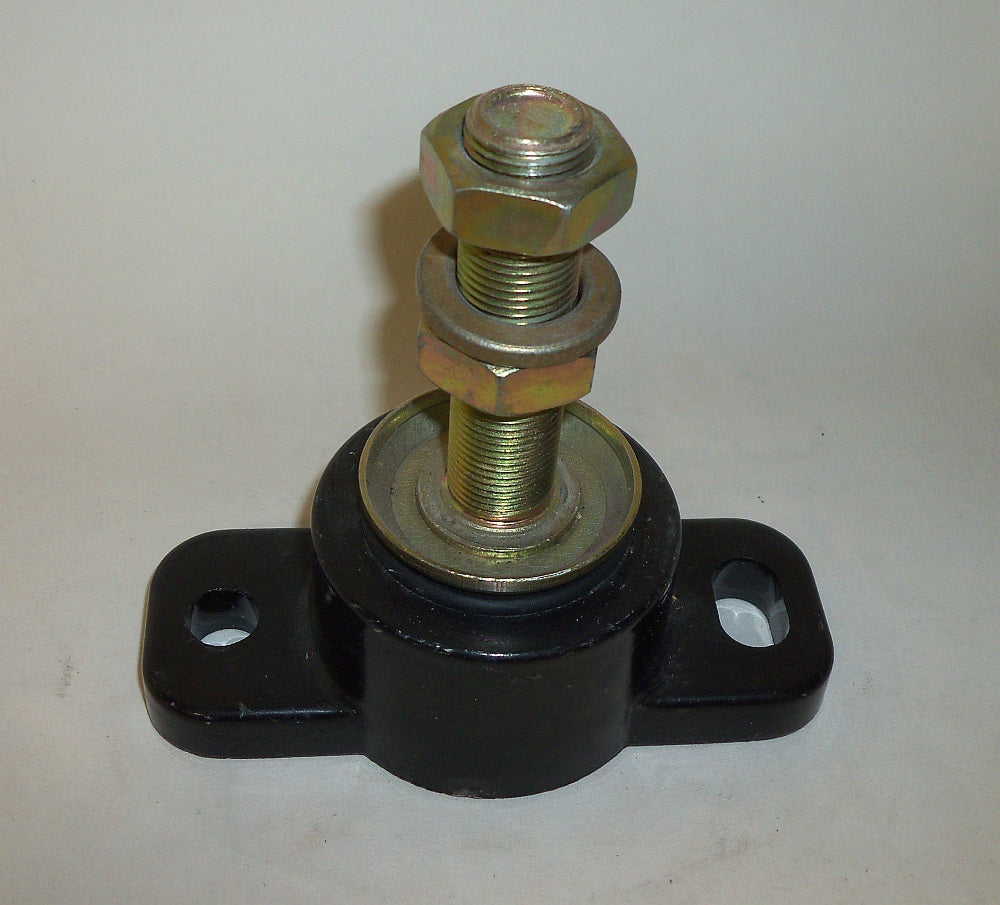

Mount, Front engine, late model current style, can be used on older ski boats. If you have a trunion pin that is threaded you will need to drill the threads out to a smooth 3/4" bore to slide over this mounts threaded post. Adjustment is done by raising/lowering the nuts on the post.

Dimensions:

Vertical Stud - 3/4" Fine Thread

Base mounting holes: 1/2" on one end, 1/2' x 1" oval on the other end, 4" center to center

Overall Height: 5", 3" of exposed threads



Mount, Front Engine

SKU MED-0020
$42.95

Mount, Front engine, late model current style, can be used on older ski boats. If you have a trunion pin that is threaded you will need to drill the threads out to a smooth 3/4" bore to slide over this mounts threaded post. Adjustment is done by raising/lowering the nuts on the post.

Dimensions:

Vertical Stud - 3/4" Fine Thread

Base mounting holes: 1/2" on one end, 1/2' x 1" oval on the other end, 4" center to center

Overall Height: 5", 3" of exposed threads



Mount, Front engine, late model current style, can be used on older ski boats. If you have a trunion pin that is threaded you will need to drill the threads out to a smooth 3/4" bore to slide over this mounts threaded post. Adjustment is done by raising/lowering the nuts on the post.

Dimensions:

Vertical Stud - 3/4" Fine Thread

Base mounting holes: 1/2" on one end, 1/2' x 1" oval on the other end, 4" center to center

Overall Height: 5", 3" of exposed threads
