***MADE IN THE USA***

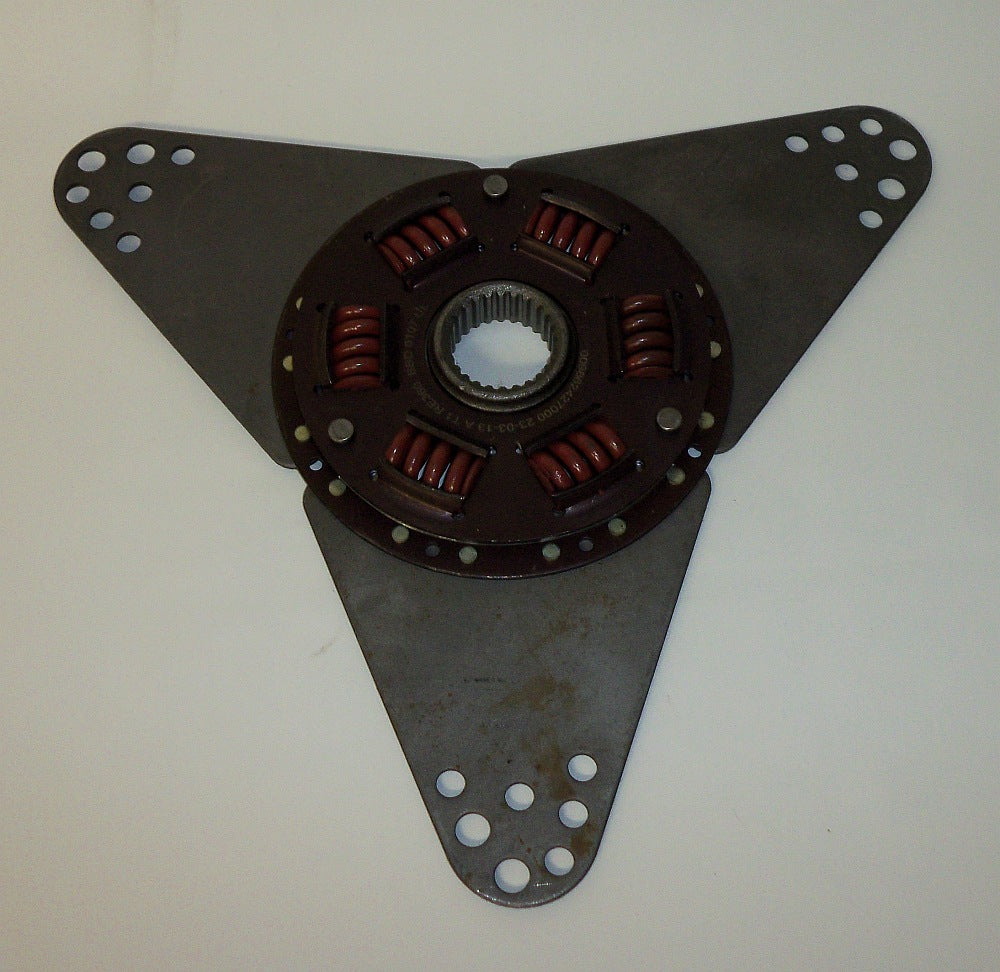

This is the common replacement for Chevy Small Blocks under 300 HP using the Borg Warner Velvet Drive or ZF 1:1 direct drive transmissions with 26 tooth spline.
FORD 351W use the "clipped Ear" version of this damper for ring gear clearance Our Part# MED-0007
USE LockTite on the bolt threads!
Strange rattling, metallic sounds coming the the back of your engine, worse at idle, high eng. hours?? This is typically from the drive damper going bad.
Replacement Notes: Remove exhaust near trans, remove trans mount bolts to boat & drive-shaft coupling, loosen front pinion bolts & WD-40 pinion. Hoist rear eng. w/trans, remove trans, remove bellhousing, remove drive plate. Carefully choose bolt holes in new damper, attach with same bolts (Typically only 3 bolts used, original may have had 6) USE LOCKTITE on threads. reinstall bell-housing, apply spline grease, trans should slide easily into drive if bolted up correctly. Put back together.
WILL NOT work with PCM 40 transmissions with 15 tooth spline input shaft.
***MADE IN THE USA***
This is the common replacement for Chevy Small Blocks under 300 HP using the Borg Warner Velvet Drive or ZF 1:1 direct drive transmissions with 26 tooth spline.
FORD 351W use the "clipped Ear" version of this damper for ring gear clearance Our Part# MED-0007
USE LockTite on the bolt threads!
Strange rattling, metallic sounds coming the the back of your engine, worse at idle, high eng. hours?? This is typically from the drive damper going bad.
Replacement Notes: Remove exhaust near trans, remove trans mount bolts to boat & drive-shaft coupling, loosen front pinion bolts & WD-40 pinion. Hoist rear eng. w/trans, remove trans, remove bellhousing, remove drive plate. Carefully choose bolt holes in new damper, attach with same bolts (Typically only 3 bolts used, original may have had 6) USE LOCKTITE on threads. reinstall bell-housing, apply spline grease, trans should slide easily into drive if bolted up correctly. Put back together.
WILL NOT work with PCM 40 transmissions with 15 tooth spline input shaft.
